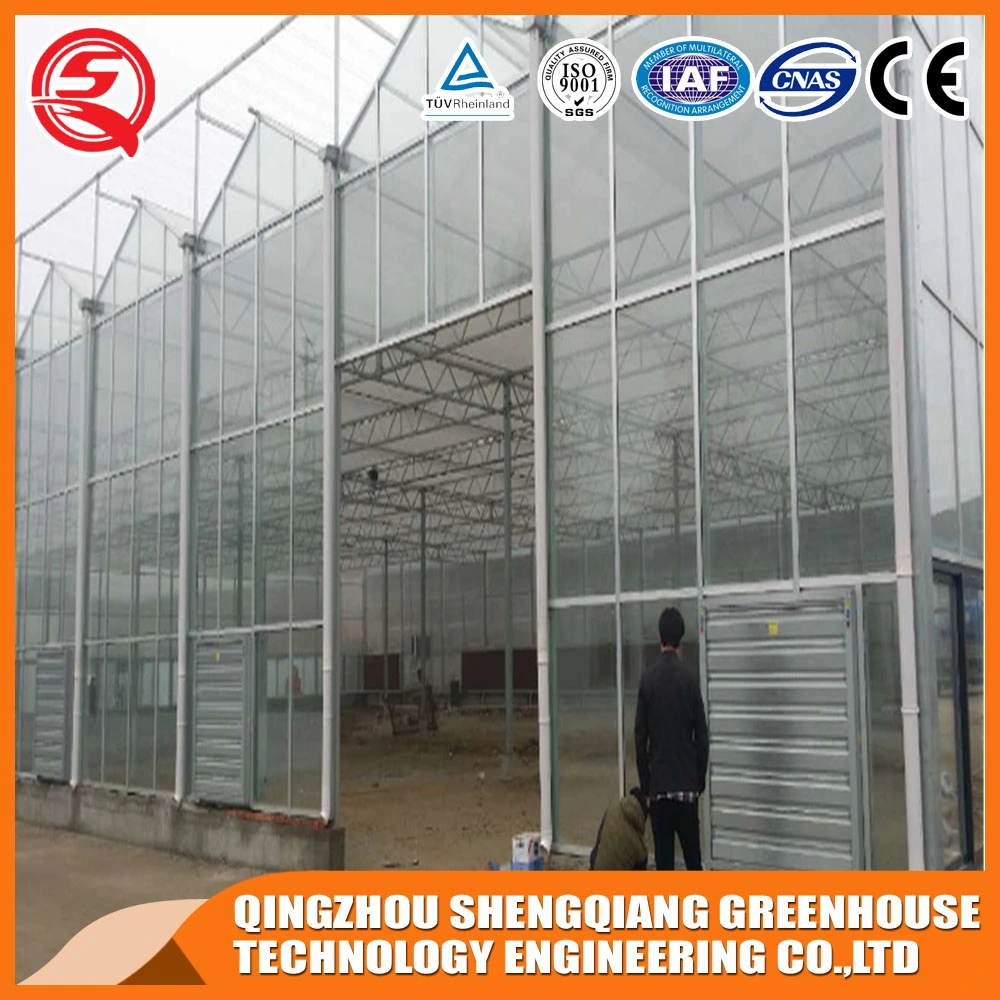

Multi-Span garden Greenhouse grow tower for sale with PC Sheet/hydroponics
Greenhouse Introduction
1.Introduction:PC sheet greenhouse usually is Venlo type ( also can be circular arch ), and often use the form of multi span. It has the character of modern appearance, strong structure, moderate light transmittance, remarkable heat preservation performance, large water displacement, strong anti-wind ability, suitable for large wind and rainfall areas,long using life,greatly reducing winter operating costs.
2.Structure characters:
1.Greenhouse adopted with whole steel keels as the holders which working life more than 15 years.PC sheet life is at least 10 years.
2.Strong wind/snow load resistance.
3. Bolted type framework, easy to install.
4.Multi-span design whit large interior space. It can offer high use ratio of the land and is good choices for extensive plantation and mechanized operation.
Technical Parameters
Greenhouse Optional System
Customers can choose these greenhouse system according to you needs!| Polycarbonate Sheet greenhouse | |||||
| Span | 6.4m~16m(Popular 9.6m,10.8m) | ||||
| Eaves height(From sink to ground) | 3.0m~8.0m | ||||
| Covering | Polycarbonate sheet(8mm/10mm) | ||||
| Wind load | 0.50KN/m2 | ||||
| Snow load | 0.30KN/m2 | ||||
| Dead load | 20KG/m2 | ||||
| Specification and dimension | |||||
| Structure | The south and north sides of Greenhouse are gables, the east and west sides are side walls. | ||||
| Span | 9.6m/10.8m(customization) | L*W | Customization | ||
| Column space | 4.0m | Around the dado height | 0.5m | ||
| Eaves height | 4.0m | Ridge height | 5.0m | ||
| Outside shading height | 5.5m | ||||
Cooling System
1. Cooling fans and cooling pads;
2. With air circulation fan,can moist purified air.
3. The temperature can be cooled down about 10 degrees,
which can maintain the temperature in the greenhouse at 26-30ºC in summer.
Ventilation System
1.Roof vents and side vents.
2. Manual or electrical control.
3. The ventilation is realized by the film rolling up and down.
Heating System
The heating system is divided into kinds: one is a gas-fired hot blast stove,
the other is heated by natural gas, and the other is heated by an air conditioner unit.
1. Cooling fans and cooling pads;
2. With air circulation fan,can moist purified air.
3. The temperature can be cooled down about 10 degrees,
which can maintain the temperature in the greenhouse at 26-30ºC in summer.
Ventilation System
1.Roof vents and side vents.
2. Manual or electrical control.
3. The ventilation is realized by the film rolling up and down.
Heating System
The heating system is divided into kinds: one is a gas-fired hot blast stove,
the other is heated by natural gas, and the other is heated by an air conditioner unit.
Shading System
1.The outside shade net, the internal use of aluminum foil net.
2. Drive system and pull curtain motor.
Growing system
1.Seeding bed system.
1.The outside shade net, the internal use of aluminum foil net.
2. Drive system and pull curtain motor.
Growing system
1.Seeding bed system.
2.Hydroponics Culture.
3.Substrate Culture.
3.Substrate Culture.
Irrigation System
1.Drip irrigation.
2.Sprinkling irrigation.
Lighting system
High pressure sodium lamp, or LED lamp.
Control system
Semi-auto control or intelligent control.
1.Drip irrigation.
2.Sprinkling irrigation.
Lighting system
High pressure sodium lamp, or LED lamp.
Control system
Semi-auto control or intelligent control.
Production Flow
Company Introduction
1. Our factory has been engaged in greenhouse production for more than 10 years, has a wealth of production and construction experience and technology.2. Our factory has project design, construction and project management capabilities, to provide customers with a better purchase experience.
3. Our factory according to the needs of customers design the best program, in the premise of high quality for customers to save costs and increase customer efficiency.
4. Our factory offers a one-year warranty. After the warranty period, we will still be the most reasonable price to provide replacement of greenhouse accessories.
Packaging&Delivery
Payment:
T/T , L/C and Western Union.
T/T , L/C and Western Union.
Delivery:
A deposit is an advance payment of 40% of the value of the goods,
the remaining 60% will be paid before shipment.20 days after receipt of deposit.
Packing:
1.Equipment using carton packaging.
2.Steel frame bulk.
3.Accessories are packed in packing bags.
4.Can also be packaged according to customer requirement.
A deposit is an advance payment of 40% of the value of the goods,
the remaining 60% will be paid before shipment.20 days after receipt of deposit.
Packing:
1.Equipment using carton packaging.
2.Steel frame bulk.
3.Accessories are packed in packing bags.
4.Can also be packaged according to customer requirement.
Trade ability
1. Our greenhouse exports to more than and 20 countries.2. Multinational customers to visit our factory many times, and expressed satisfaction with our products.
3. We accept the custom of small area and large area of greenhouse.
FAQ
1.Q: As we have different type equipments, please indicate following details in your inquiry email.A: (1) The specific area (L*W)
(2) Product usage/system type
(3) The requiement of covering, structure,material, temperature, humidity and light intensity.
These are very important for providing you a complete solution.
2.Q: What is the minimum order quantity?
A: The minimum order quantity is 3000 square meters.But if below 3000 square meters,we also can produce it.The price is adjusted according to the quantity of order.
3.Q: Are you a manufacturer or trading company?
A: We are a manufacturer, and produce these equipment that has more than ten years of experience. All you are warmly welcomed to visit us!
